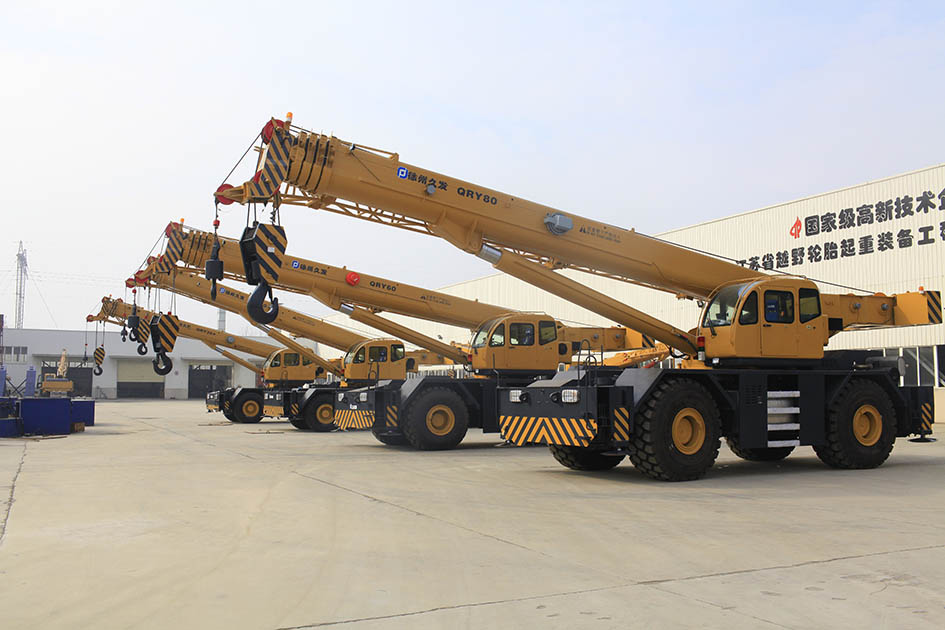

80 Ton Rough Terrain Crane
RT 80 crane has good traffic-ability, dynamic performance and mobility, and is able to operate in every direction and travel while hoisting without outriggers. The product is widely used in heavy lifting operations, short distance transfer, narrow-site lifting operations for construction sites.
| Max. Lifting Capacity:80T |
| Max. Boom Length:64.68m |
| Max. Lifting Height:65m |
-
Fast And Safe Logistics
-
Get samples for free
Introduction
An 80 ton mobile crane is a heavy-duty crane that is designed to lift and move heavy loads weighing up to 80 tons. It is typically mounted on a mobile chassis that allows it to be easily transported to different job sites. Since they are not as large as the 100 ton model, they are more affordable and can be used for a variety of applications.
80 Ton Rough Terrain Crane Advantages:
- torque limiter
- swing table lock device
- winch over-winding and over-relaxation protect device
- outrigger lock device outrigger bidirectional hydraulic loc
- rear axle steering lock and rear wheel return detector
- emergency steering power device
- gradienter
- hydraulic system overflow valve
- balance valve
80 Ton Rough Terrain Crane Feature:
-
front-wheel steering, four-wheel steering and crab steering, all-wheel drive, off-road performance, suitable for off-high way travel.
-
The axle adopts Germany KESSLER brand, with axle differential lock.
-
The gearbox adopts ZF brand.
-
The brake system adopts American Mico brand.
80 ton mobile crane
-
What are the advantages of using an 80 ton mobile crane?
The advantages of using an 80 ton mobile crane include its high lifting capacity, versatility, mobility, and flexibility. It is ideal for a wide range of lifting and loading tasks, and it can be easily transported to different job sites.
-
What types of industries use 80 ton mobile cranes?
Industries that commonly use 80 ton mobile cranes include construction, mining, manufacturing, oil and gas, and transportation. These cranes are used for a variety of tasks, such as lifting heavy equipment, materials, and structures.
-
How is an 80 ton mobile crane operated?
The mobile crane is operated by a trained and certified crane operator who controls the crane’s movements using a sophisticated control system. The operator sits in a comfortable cab that provides a clear view of the job site and allows for precise and accurate control of the crane.
-
What safety features are included in the mobile crane?
The mobile crane is equipped with a range of safety features, such as overload protection, emergency stop buttons, anti-collision systems, and outriggers that provide additional stability and support when lifting heavy loads.
-
How is the mobile crane maintained?
The mobile crane requires regular maintenance and inspection to ensure that it is in good working condition. This includes checking the hydraulic systems, electrical systems, and other components of the crane. The crane may also need to be lubricated and serviced periodically to keep it running smoothly.
Specifications
| Category | Items | Unit | Parameters | ||
| Overall length | mm | 15000 | |||
| Outline Dimension | Overall width | mm | 3350 | ||
| Parameters | Overall height | mm | 3800 | ||
| Axle base | mm | 4650 | |||
| Tread | mm | 2520 | |||
| Weight Parameters | Dead weight in travel state | Kg | 55670 | ||
| Axle load | Front axle | Kg | 27310 | ||
| Rear axle | Kg | 28360 | |||
| Power Parameters | Engine rated output | Kw (r/min) | 228/2100 | ||
| Engine rated torque | N.m (r/min) | 1200/1400 | |||
| Travel Parameters | Travel speed | Max. travel speed | Km/h | 35 | |
| Turning Radius | Min. turning radius | mm | 8000 | ||
| Turning radius at swing table tail | mm | 4680 | |||
| Min. ground clearance | mm | 580 | |||
| Approach angle | ° | 20 | |||
| Departure angle | ° | 20 | |||
| Braking distance (at 30km/h) | m | ≤8.5 | |||
| Max. grade ability | % | 50 | |||
| Max. outside noise during accelerating | dB(A) | 84 | |||
| Fully-extend outriggers, 360° swing | ||||||
| Radius (m) | Base boom length 12m | Boom length 16.25m | Boom length 20.5m | Boom length 26.875m | Boom length 37.5m | Full-extend boom length 46m |
| Lifting load (kg) | Lifting load (kg) | Lifting load (kg) | Lifting load (kg) | Lifting load (kg) | Lifting load (kg) | |
| 3 | 80000 | |||||
| 3.5 | 80000 | 54000 | ||||
| 4 | 74000 | 50000 | ||||
| 4.5 | 68000 | 47000 | ||||
| 5 | 60000 | 44000 | 32000 | |||
| 5.5 | 53000 | 41000 | 30000 | |||
| 6 | 45000 | 38000 | 28000 | |||
| 6.5 | 38000 | 32000 | 26800 | |||
| 7 | 33500 | 28000 | 25000 | 18100 | 13400 | |
| 8 | 27000 | 22000 | 22500 | 16300 | 11900 | |
| 9 | 18000 | 18300 | 14800 | 10700 | ||
| 10 | 15000 | 14500 | 13500 | 9700 | ||
| 11 | 12500 | 12400 | 11400 | 8800 | ||
| 12 | 10600 | 9800 | 8000 | 7000 | ||
| 14 | 8000 | 8500 | 6700 | 5800 | ||
| 16 | 6600 | 5700 | 5000 | |||
| 18 | 5300 | 4800 | 4200 | |||
| 20 | 4200 | 4100 | 3600 | |||
| 22 | 3500 | 3100 | ||||
| 24 | 3000 | 2600 | ||||
| 26 | 2600 | 2200 | ||||
| 28 | 1900 | |||||
| 30 | 1600 | |||||
| 32 | 1300 | |||||
| 34 | 1100 | |||||
| 36 | 900 | |||||
| Rate | 12 | 10 | 8 | 6 | 4 | 4 |
| Hook Standard | For 80t | For 30t | ||||
| Hook weight | 814Kg | 319kg | ||||
