RT25 Rough Terrain Crane

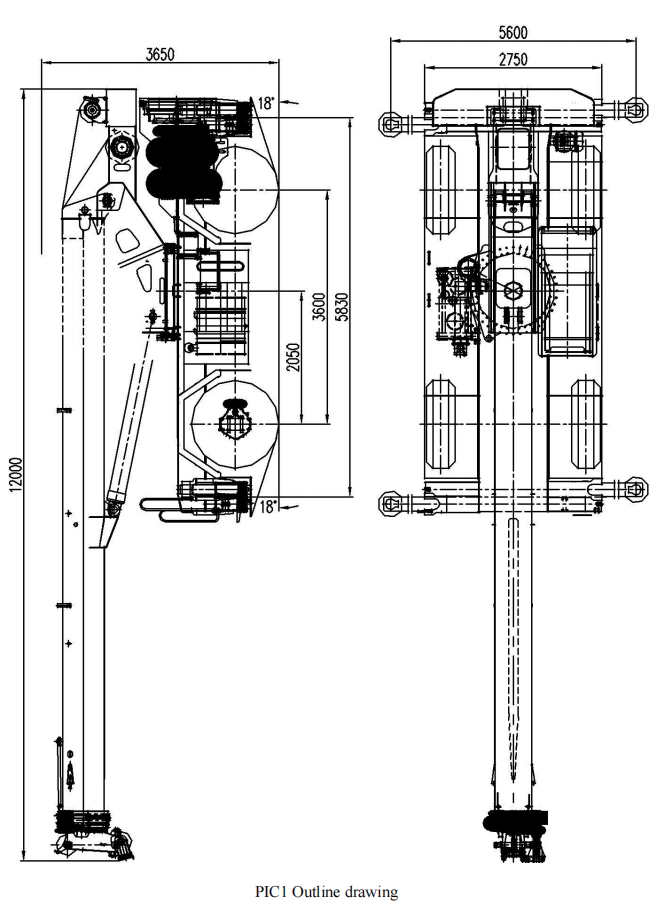

Overall length:12000mm

Overall width:2750mm

Overall height:3650mm

Introduction

Notes: Explanations to Lifting Load

1) The rated lifting load value given in the table is the maximum lifting capacity when the

crane is set on solid and level ground. The load should not exceed 75 % of the tip-over load;

2) The total rated lifting load given in the table includes the weight of hook and slings;

3) The working radius given in the table is the actual value including the deformation amount

of the boom, so lifting operation should be carried out as per working radius.

4) 75 % of the tip-over load takes into account wind force 6, i.e. lifting operation still can be

carried out with fully-extended outriggers when the wind pressure reaches 125N/m2, but lifting

operation with tyres or traveling with load are prohibited.

Category	Items		Units	Parameters
Outline Dimension Parameters	Overall length		mm	12000
	Overall width		mm	2750
	Overall height		mm	3650
	Axle base		mm	3600
	Tread		mm	2250
Weight Parameters	Dead weight in travel state		Kg	24000
	Axle load	Front axle	Kg	12650
		Rear axle	Kg	11350
Power Parameters	Engine rated output		Kw/(r/min)	140/2200
	Engine rated torque		N.m(r/min)	760/1400~1600
Travel Parameters	Max. travel speed		Km/h	40
	Min. turning radius		m	9.65
	Min. turning radius of boom head		m	3.23
	Min. ground clearance		mm	315
	Approach angle		°	18
	Departure angle		°	18
	Braking distance (at 30km/h)		m	≤8.5
	Max. grade ability		%	50
	Max. outside noise during accelerating		dB(A)	84

Category	Items			Unit	Parameters
Main Performance Parameters	Max. total rated lifting load			t	25
	Min. rated working radius			m	3
	Max. load moment	Base boom		KN.m	697
		Fully-extended boom		KN.m	552
	Outrigger span	Longitudinal		m	5.83
		Lateral		m	5.6
	Lifting height	Base boom		m	10
		Fully-extended boom		m	30.7
	Boom length	Base boom		m	9.9
		Fully-extended boom		m	31.2
Working Speed Parameters	Luffing time	Boom raising time		s	55
		Boom descending time		s	36
	Boom telescoping time	Boom fully-extended time		s	80
		Boom fully retracting time		s	48
	Max. swing/slewing speed			r/min	2.0
	Outriggers telescoping time	Horizontal outriggers	Extending synchronously	s	16
			Retracting synchronously	s	11
		Vertical outriggers	Extending synchronously	s	30
			Retracting synchronously	s	30
	Hoisting speed (wire rope is at the 4th layer)	Main winch	Full load	m/min	140
			No load	m/min	110
		Auxiliary winch	Full load	m/min	140
			No load	m/min	90
