Introduction

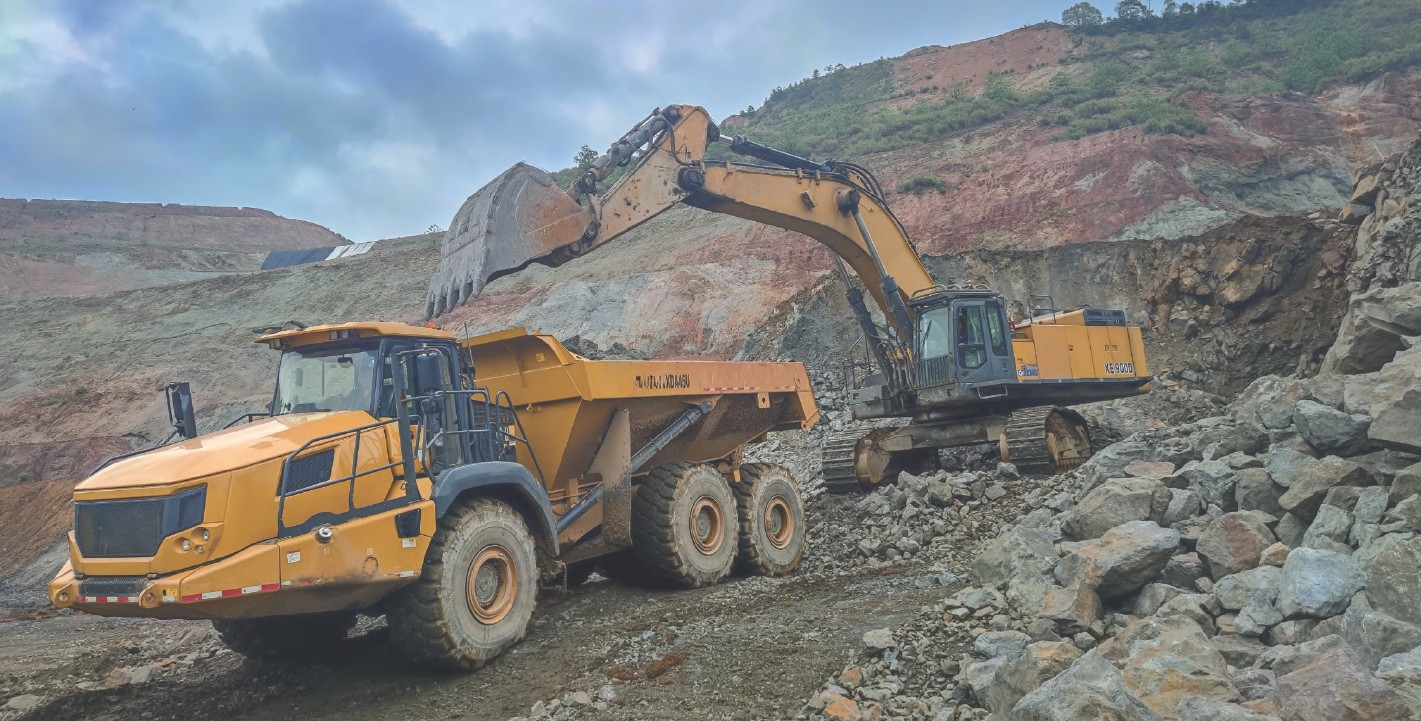

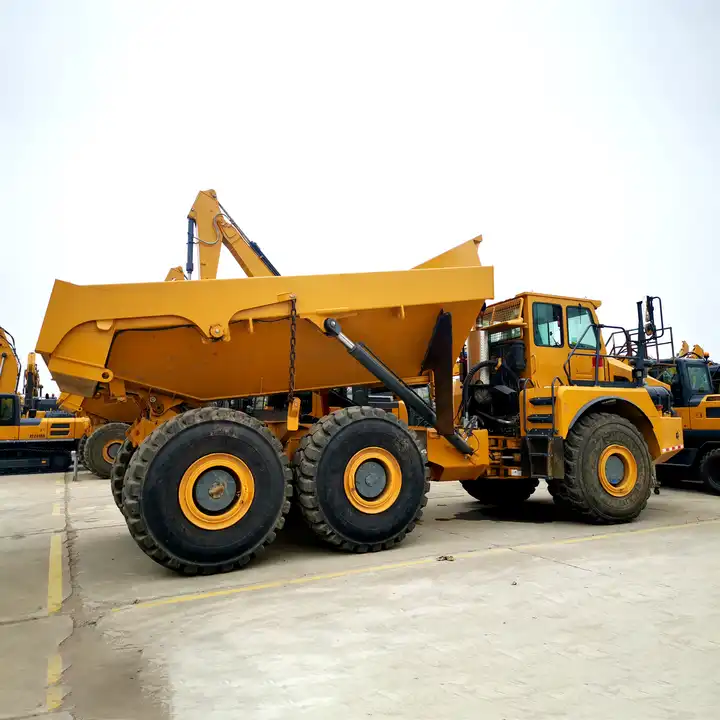

XDA45U Articulated Dump Truck is designed for use in mining, quarry, water conservation, harbour,brown field and construction sites. It has a powerful drivetrain, superior hauling performance, excellent manoeuvrability and efficiency making it suitable for the wide range of applications. The product is designed to run continuously in an operating environment from -25 to 40℃ and meets Euro V emission standard.
Specifications
| Item | Model | Unit | XDA45 | ||
| Size Specs | Overall length | mmm | 11070 | ||
| Overall width | mmm | 3950 | |||
| height | mm | 3846 | |||
| Front centre wheelbase | mmm | 4450 | |||
| Rear centre wheelbase | mm | 1940 | |||
| Wheel center distance | Front wheel | mm | 2700 | ||
| Rear wheel | mm | 2700 | |||
| Weight Specs | Total weight of the vehicle | kg | 75000 | ||
| Rated load | kg | 41000 | |||
| Unladen weight | kg | 34000 | |||
| Mass distribution | Unladen | Tront axle | kg | 17000(50%) | |
| Rear axle | kg | 17000(50%) | |||
| Fully loaded | Tront axe | kg | 22500(30%) | ||
| Rear axle | kg | 52500(70%) | |||
| Power Specs | Engine model | / | Benz OM502 | ||
| Rated engine power | kW/rpm | 350/1800 | |||
| Maximum engine torquel | Nm/rpm | 2300/1300 | |||
| Type of drive | / | 6x6 | |||
| Tyre | / | 29.5R25 | |||
| DrivingSpecs | Maximum speed | km/h | 51 | ||
| Minimum access circle radius | mm | 9275 | |||
| Maximum gradient | % | 45 | |||
| Maximum steering anglel | ±42 | ||||
| Minimum ground clearancel | mmm | 530 | |||
| Operating Specs | Loading height | mm | 3272 | ||
| Lifting time | s | 12 | |||
| Lifing angle | 70 | ||||
| Tank volume | loading | m3 | 19.5 | ||
| 2:1Stacking | m | 25 | |||
