Xjcm 16 Ton Truck Crane

Jiufa QY series of truck cranes have applied computer control technology, CAN bus technology, hydraulic pilot proportional control technology, electronic shift steplade-variable technology, four-wheel steering positioning detection technology and safety image monitoring system, etc.
  • Fast And Safe Logistics

  • Get samples for free

Introduction

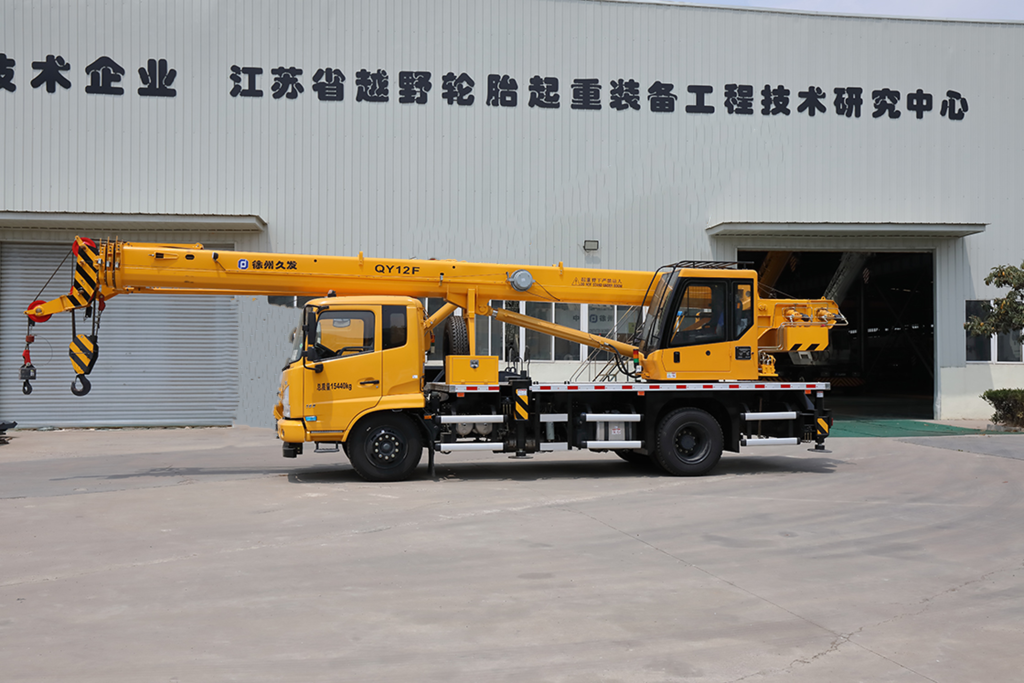

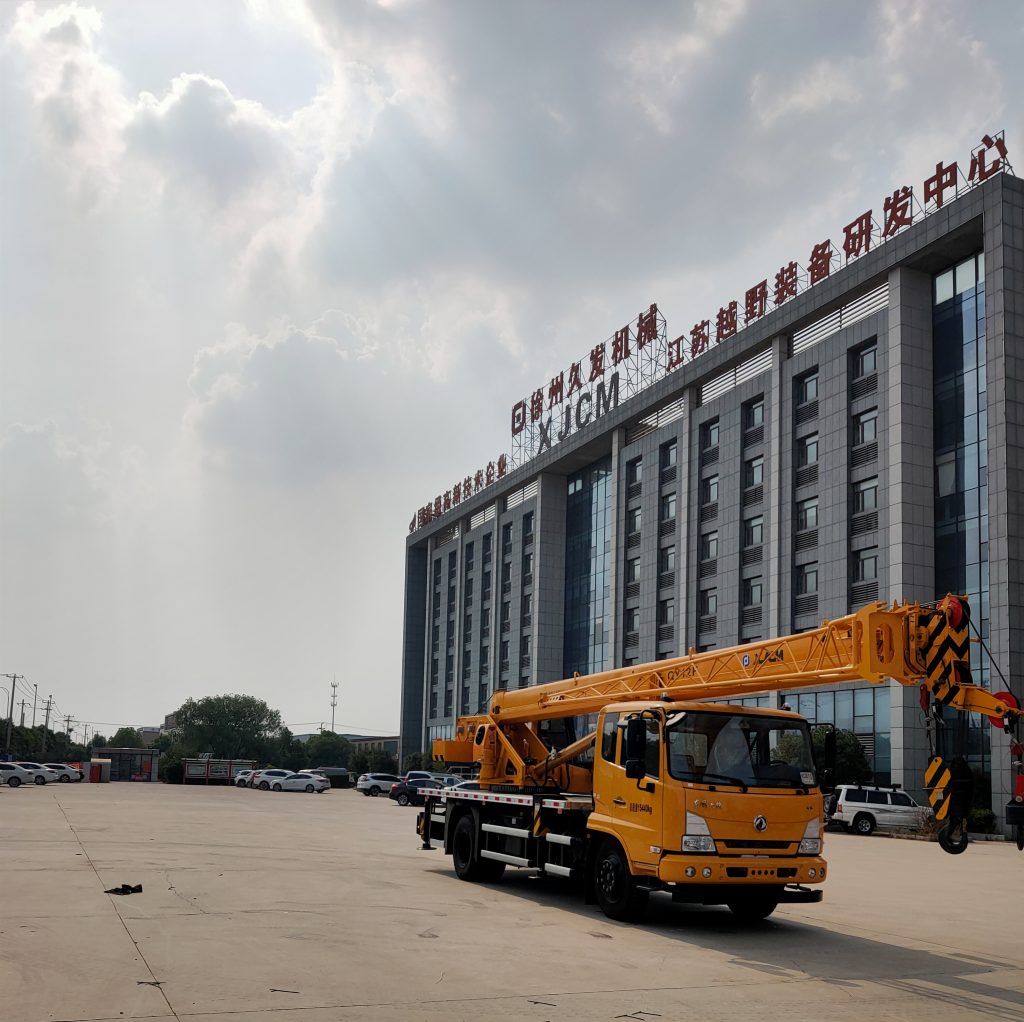

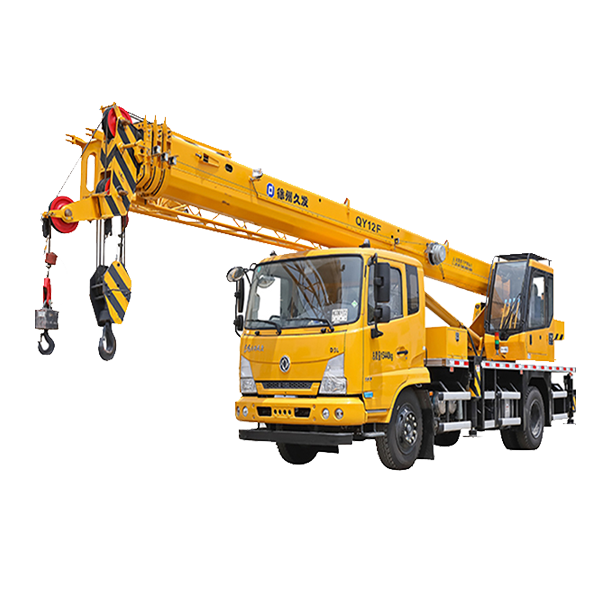

12 ton small knuckle boom truck crane refers to the installation on the car. A crane with a lifting capacity of 12 tons. The term “knuckle boom” refers to the design of the knuckle boom. It consists of multiple parts that can be folde and unfolded like joints.

These types of cranes are often used to lift heavy loads and move them to different locations. Examples include the construction, transport and logistics industries. They are often preferred over larger cranes because they are more compact and easier to maneuver in tight spaces.

If you plan to use this crane, it is important to ensure that you have the necessary training and certification. Safe operation. Additionally, you should always follow all safety guidelines and regulations to prevent accidents and injuries.

XJCM manufacture 10 ton to 120 ton truck crane,our cranes adopts the famous brand chassis. The drive cab and operator cab are separate. The crane advantages was good mobility, high reliability and convenient after-sale service.

12 Ton Small Knuckle Boom Truck Crane Feature:

  1. Lifting capacity: 12 tons is a relatively high lifting capacity for a small knuckle boom truck crane. This means that it can lift heavy loads with ease.
  2. Articulated arm: The knuckle boom arm allows for greater flexibility and maneuverability compared to a straight telescopic boom. The arm can bend and reach over obstacles, making it ideal for working in tight spaces.
  3. Hydraulic system: The hydraulic system powers the crane’s movements and can be controll by the operator from a distance using a remote control or from the crane’s cab.
  4. Outriggers: Outriggers are use to stabilize the crane during lifting operations. They extend out from the truck to provide additional support and prevent the crane from tipping over
  5. Safety features: Small knuckle boom truck cranes are typically equipped with various safety features, such as load indicators, alarms, and emergency stop buttons, to ensure safe operation.
  6. Compact size: A 12 ton small knuckle boom truck crane is design to be compact and lightweight, making it easy to transport and maneuver on tight job sites.
  7. Versatility: A knuckle boom truck crane can be use for a variety of applications, such as construction, landscaping, and utility work. It can lift and move materials, equipment, and even people to different heights and locations.
https://youtu.be/qkia0CB5ikQ

12 ton small knuckle boom truck crane FAQ:

Q:What is the maximum lifting capacity of a 12 ton small knuckle boom truck crane?

A:As the name suggests, the small knuckle boom truck crane has a lifting capacity of 12 tons, which means it can lift up to 24,000 pounds.

Q:How far can the small knuckle boom truck crane reach?

A:The reach ofthe small knuckle boom truck crane can vary depending on the specific model, but it typically has a horizontal reach of around 50-60 feet and a vertical reach of around 70-80 feet.

Q:Can the small knuckle boom truck crane be operate by one person?

A:Yes, the small knuckle boom truck crane can be operate by one person using a remote control or from the crane’s cab.

Q:What kind of maintenance does the small knuckle boom truck crane require?

A:Regular maintenance is essential to ensure the safe and reliable operation of the small knuckle boom truck crane. This can include routine inspections, lubrication of moving parts, and replacement of worn or damaged components.

Q:What kind of safety features are include in the small knuckle boom truck crane?

A:The knuckle boom truck crane typically includes various safety features, such as load indicators, alarms, emergency stop buttons, and outriggers to prevent tipping during lifting operations. Additionally, operators should be train and certified to operate the crane safely.

Specifications

Category Item Unit Value
Dimension Overall length mm 11985
Overall width mm 2500
Overall height mm 3360
Axle base mm 4400
Tyre tread mm 1810(Front)1800(Rear)
front suspension/rear suspension mm 1450/2190
front protraction/rear protraction mm 3255/690
  Dead weight in travel state Kg 15600
Weight  Curb weight Kg 15405
  Alex load Front axle Kg
  Rear axle Kg
Power parameter Engine rated output Kw/(r/min) 118/2300
Engine Max.torque N.m(r/min) 550/1200-1900
Travel parameter Max.travel speed Km/h 89
Turning radius at swing table tail m 2.53/2.13
Min.ground clearance mm 260
Approach angle ° 16
Departure angle ° 10

Category

Item

Unit

Value

Main performance parameters

Max.total rated lifting load

t

12

Max.working radius

m

3

Max.load torque Base boom

KN.m

475

Full-extended boom

KN.m

171

Outrigger span   Longitudinal





m

4.58

Lateral

m

5.6

Lifting height Base boom

m

10.4

Full-extended boom

m

32

Full-extended boom+Jib

m

39

Boom length Base boom

m

9.93

Full-extended boom

m

31.23

Full-extended boom+Jib

m

38.23

Working speed parameters

Luffing time Raising boom

s

68

Descending time





s

38

Telescoping time





Fully extend time

s

97

Fully retracting time





s

37

Max.swing speed

r/min

2.5

Outriggers telescoping time Horizontal Extend synchronously





s

19

Retracting



synchronously



s

14

Vertical Extend synchronously

s

34

Retracting synchronously

s

16

Max.hoisting speed(main winch,no load)

m/min

95

Max.hoisting speed(auxiliary winch,no load)





m/min

95
