The construction industry continually evolves to meet demands for efficiency, safety, and cost savings. Among the innovations transforming the sector, self-erecting cranes have emerged as a game-changer. These fast erecting cranes combine rapid assembly, portability, and economic advantages, making them indispensable for projects with tight timelines or space constraints.
Table of contents
cnxjcm
What Are Self-Erecting Cranes?
Self-erecting cranes are compact, tower-style lifting systems designed to assemble themselves with minimal manual intervention. Unlike traditional tower cranes, which require external cranes and extensive labor for setup, self-erecting models use integrated hydraulic systems and folding mechanisms. They are often mounted on mobile bases or trailers, enabling quick relocation between job sites.
Key Features vs. Traditional Cranes
| Feature | Self-Erecting Crane | Traditional Tower Crane |
|---|---|---|
| Setup Time | 1–4 hours | 2–7 days |
| Mobility | Easily relocatable | Fixed until disassembled |
| Labor Required | Minimal | Extensive |
| Footprint | Compact | Large |
Common in urban construction, residential buildings, and infrastructure projects, these cranes excel in environments where speed and adaptability are critical. Their modular design allows them to operate in confined spaces, reducing the need for large staging areas.
How Do Self-Erecting Cranes Work?
Self-erecting cranes streamline setup through automated processes. Here’s a step-by-step breakdown:
- Positioning: The crane is transported to the site and positioned directly on the ground or mobile chassis — no foundation required.
- Mast Extension: Hydraulic systems raise the mast and deploy the jib automatically, without external lifting equipment.
- Jib Deployment: The folding jib unfolds automatically, often via remote control.
- Calibration: Built-in sensors monitor load limits and basic working conditions to ensure safe operation.
- Operation: Ready to lift loads (typically 1–4 tons) within hours.
Key Components
- Mast System: Automatically locks during assembly, providing stable vertical support.
- Folding Jib: Connects automatically in the air to offer horizontal reach and easy setup.
- Hydraulic System: Drives fast and safe self-erection and folding within minutes.
- Control Panel: Operated via a simple wireless remote control — no professional license required.

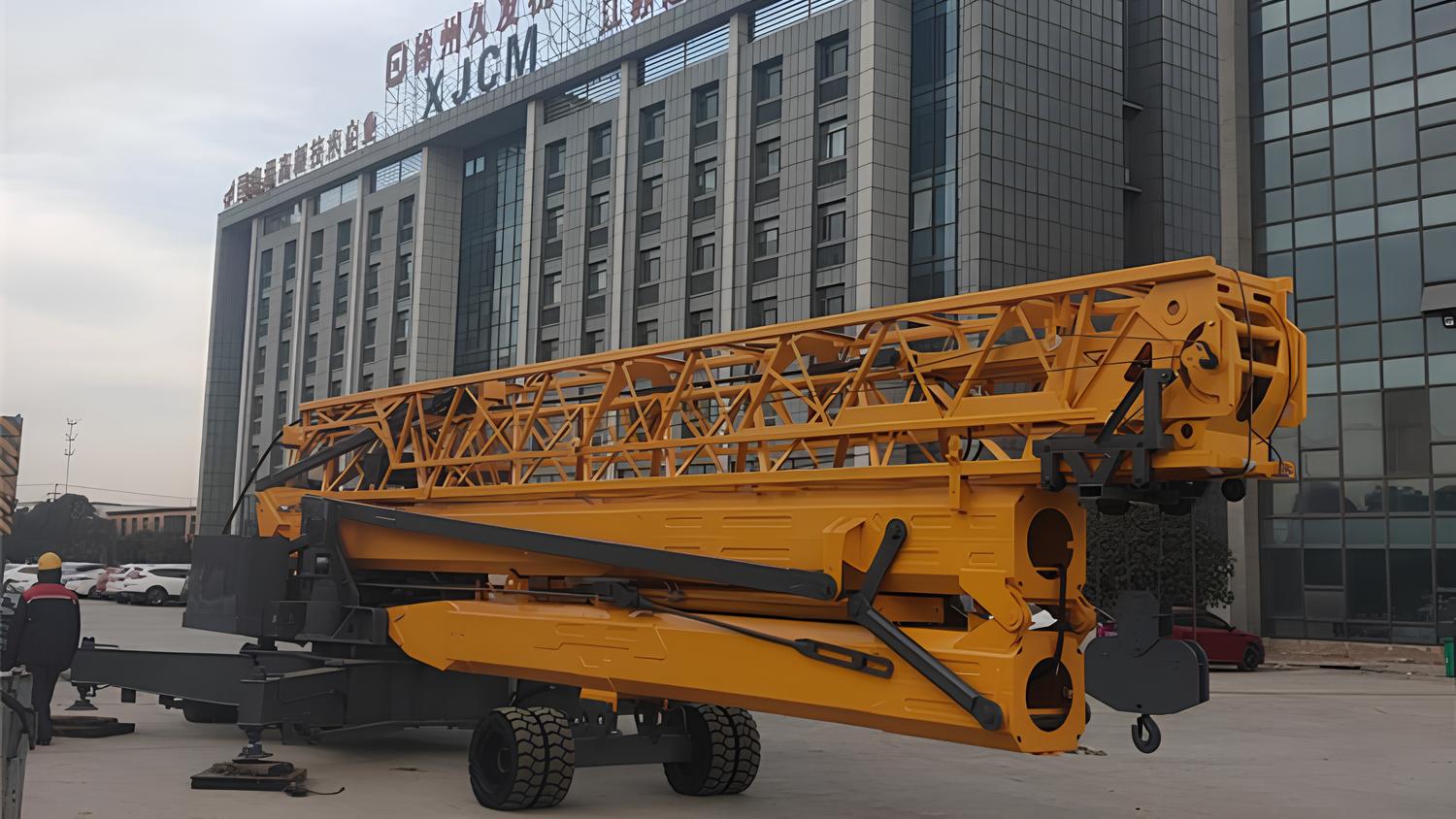

- Built-in Safety Features: Includes overload protection and emergency stop to ensure safe lifting operations. After work is completed, the crane retracts into a compact form, ready for transport on a flatbed or trailer.
Safety mechanisms, such as load limiters and wind-speed sensors, ensure stability. After completing tasks, the crane retracts its components into a compact form, ready for transport.
Fast Setup Times: Redefining Project Timelines
Traditional tower cranes can take days to assemble, requiring skilled labor, auxiliary equipment, and site preparation. In contrast, self-erecting cranes reduce setup to a matter of hours.
Setup Time Comparison
| Crane Type | Average Setup Time |
|---|---|
| Self-Erecting Crane | 2–4 hours |
| Traditional Tower Crane | 1–3 days |
This speed stems from their automated systems. For example, hydraulic rams lift the mast without external cranes, while pre-assembled components minimize on-site assembly. Fast setup allows projects to commence sooner, accelerating overall timelines—a critical advantage in fast-track developments like housing complexes or emergency infrastructure repairs.
Enhanced Mobility: Adapting to Dynamic Job Sites
Mobility is a cornerstone of self-erecting cranes. As a type of mobile tower crane, they are often mounted on wheeled carriers or trailers, enabling easy transport between locations. This eliminates the need for disassembly and reassembly, which is common with fixed tower cranes.
Advantages of Mobility
- Quick Relocation: Move between sites in a single day.
- Space Efficiency: Operate in tight urban areas.
- Reduced Downtime: Ideal for multi-site projects like utility installations.
Their compact footprint also makes them ideal for urban sites with limited space. A single operator can maneuver the crane into position, reducing logistical challenges.
Cost-Effectiveness: Maximizing Value
Self-erecting cranes offer significant cost savings across their lifecycle, helping to reduce overall construction costs in labor, transport, and site preparation.
Cost-Saving Factors
| Factor | Savings |
|---|---|
| Labor | Up to 70% reduction |
| Transportation | 50% lower fees |
| Site Preparation | Minimal foundation needs |
| Versatility | Replaces multiple machines |
- Labor Reduction: Automated assembly cuts labor requirements by up to 70% compared to traditional cranes.
- Lower Transport Costs: Compact dimensions reduce transportation fees.
- Reduced Site Preparation: Minimal foundation requirements (e.g., concrete pads) decrease pre-installation expenses.
- Versatility: One crane can serve multiple phases of a project, avoiding specialized equipment rentals.
Applications in Modern Construction
Self-erecting cranes are versatile tools suited to diverse scenarios:
- Urban High-Rises: Small footprint and quiet operation minimize disruption.
- Residential Housing: Quick setup supports rapid construction.
- Infrastructure Projects: Mobility benefits bridges and highways.
- Renovations: Ideal for historic districts or tight spaces.
For example, the 3-ton mobile self-erecting tower crane with a 26-meter working radius is ideal for medium-density housing developments. This type of self-erecting tower crane is increasingly favored for its ability to adapt quickly to site needs without compromising lifting capacity.
The Role of Quality Components in Crane Performance
Reliability is paramount for construction machinery. High-quality components ensure safety and efficiency:
- Folding Jibs: Automatically connected in the air and built from reliable materials for extended use.
- Hydraulic Systems: Precision-engineered for fast, stable self-erection and folding.
- Control Systems: Easy-to-use wireless remotes allow safe, efficient operation—no professional license required.
Suppliers like Xuzhou Jiufa Construction Machinery Co., Ltd (XJCM) provide critical parts, extending equipment lifespans and reducing maintenance costs.
Self-Erecting vs. Traditional Tower Cranes: A Comparison
| Aspect | Self-Erecting Crane | Traditional Crane |
|---|---|---|
| Max Load | 1–4 tons | 5–20+ tons |
| Max Height | 16–24 meters | 100+ meters |
| Relocation | Hours | Days |
| Best For | Medium/small projects | Large-scale projects |
Future Trends in Crane Technology
- AI Automation: Self-calibrating systems for precision.
- Hybrid Power: Diesel-electric engines for sustainability.
- Telematics: Real-time monitoring for predictive maintenance.
Conclusion
Self-erecting cranes are transforming construction logistics, especially in dense urban environments. Their speed, mobility, and ease of setup reduce labor and costs, making them ideal for modern job sites. As technology evolves, these cranes will play an increasingly vital role in urban development, becoming a key asset in efficient and flexible building projects.
