4 Ton Self Supporting Tower Crane

The 4-ton self-supporting tower crane is a robust and efficient lifting solution designed for medium to large-scale construction projects. Its self-supporting design eliminates the need for additional anchoring or bracing, making it ideal for projects requiring stability, height, and heavy lifting capacity.
Max.hoisting height:22m
Max.working radius: 27m
Max.hoisting weight: 4,000kg
  • Fast And Safe Logistics

  • Get samples for free

Introduction

★ Key Features:

• Stability: The self-supporting design provides unmatched stability, even in challenging terrains or high-altitude construction.
• Efficiency: Quick setup and reduced dependency on additional equipment save time and labor costs.
• Versatility: Handles diverse tasks, from heavy lifting to precise material positioning, in a variety of construction scenarios.
• Safety: Features overload protection, emergency stop functions, and monitoring systems to ensure safe operation.
• Durability: High-quality materials and a robust structure guarantee extended service life and consistent performance.

Advantages:

• Efficiency: Quick assembly and disassembly reduce project downtime, enabling faster completion of tasks.
• Cost-Effective: The mobile design minimizes transportation costs and eliminates the need for separate assembly equipment.
• Enhanced Safety: Equipped with safety features such as overload protection, stability monitoring, and emergency stop mechanisms.
• Durability: Built with high-quality materials to withstand tough working conditions and ensure long-term reliability.
• Adaptability: Suitable for a variety of construction environments, from residential sites to commercial developments.

Applications:

High-Rise Construction: Ideal for multi-story building projects requiring significant lifting capacity.

Commercial Projects: Suitable for large-scale infrastructure developments, including malls, office buildings, and industrial facilities.

Urban Construction: Perfect for congested urban areas where space is limited and stability is essential.

Heavy Equipment Installation: Efficient for lifting and placing heavy machinery and prefabricated structures.

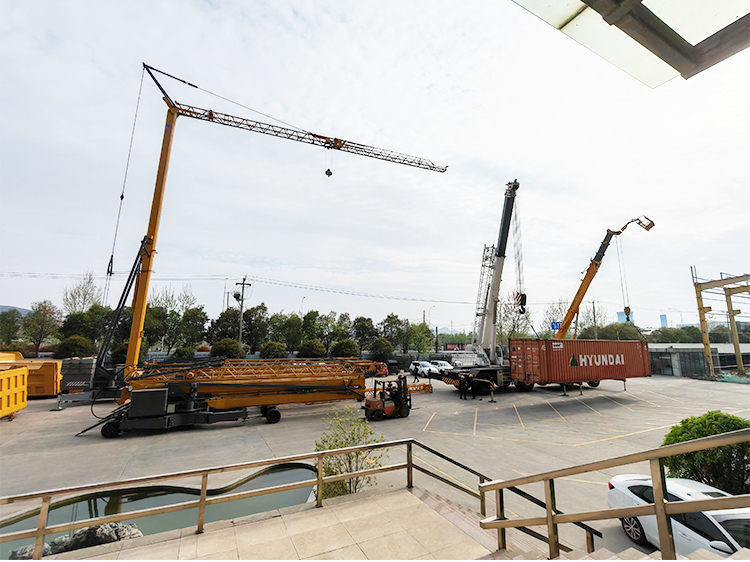

Self Supporting Tower Crane ,4 ton(

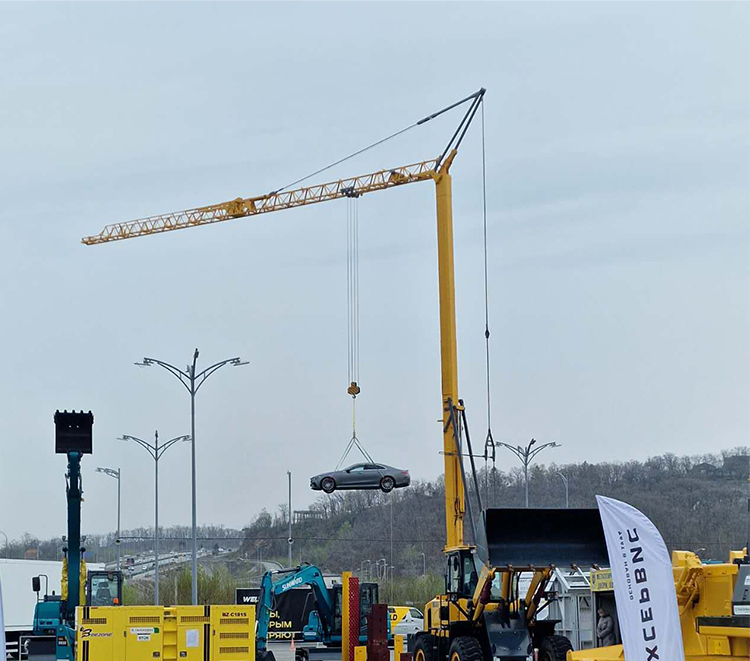

Self Supporting Tower Crane

Specifications

Project unit JFYT1924-40
Dimensions mm 12900*2200*3450
Maximum Lifting Height m 19/23
Maximum Working Radius m 24
Maximum Lifting Capacity Kg 4000
Maximum Working Radius At
Rated Max. Lifting Capacity
m 9
Lifting Capacity At
Maximum Working Radius
Kg 1300
Erection Time min 10
Outrigger Span m 4.2X4.2
Hydraulic System Working Pressure Mpa 28
Maximum Towing Speed Km/h 15
Power Supply   380V/50Hz
Total Power KW 26.9
Total Weight (Transport Weight) Kg 20000Kg
Max. Operating Weight
(Incl. Rated Load)
Kg 39000Kg
Features   (Schneider Electric,PLC control,
wireless remote control operation,
jiufa force limiter, fully automatic erection,
hydraulic outriggers,anemometer)
