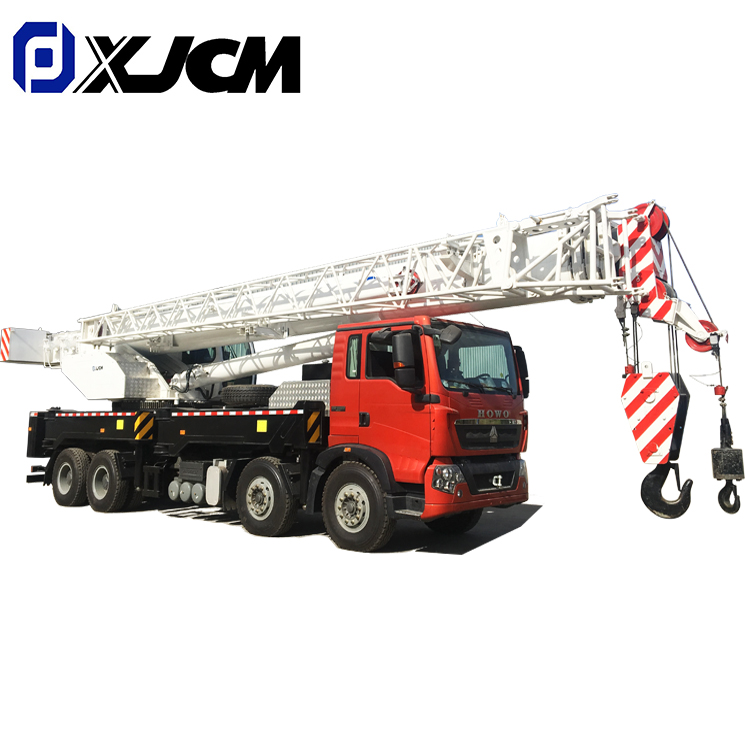

100 tons heavy hydraulic truck crane is a large mobile crane. It uses hydraulic power to lift up to 100 tons. This type of crane is mounted on a truck chassis. It can be driven to different job sites and set up quickly and easily.
XJCM truck crane’s technology is mature. Also we have best price and good after sale service.
XJCM’s truck crane adopts the famous brand chassis. The drive cab and operator cab are separated. The crane advantages was good mobility, high reliability .
The company’s QY12-130-ton series truck cranes adopt domestic high-end general-purpose chassis. Adhere to independent innovation and adopt PLC programmable integrated control technology in a large area.The quality is reliable and the maintenance is convenient, which is well received by customers.
Starting from 2020, the R&D Department of XJHI began to design the superstructure of truck cranes for foreign customers. According to the chassis of different brands and specifications, we aim to design the most suitable model for each customer.They will make more efforts in the field of manufacturing truck cranes in future.
Q:What is the maximum weight that a 100-ton hydraulic mobile truck crane can lift?
A:As the name suggests, a 100-ton hydraulic mobile truck crane can lift up to 100 tons of weight.
Q:How far can the boom of a 100-ton hydraulic mobile truck crane extend?
A:The boom of a 100-ton hydraulic mobile truck crane can extend to different lengths, depending on the model. However, it typically ranges from 35 meters to 70 meters.
Q:How fast can a 100-ton hydraulic mobile truck crane move?
A:The speed of this machine will vary by model and road conditions. However, it typically has a maximum speed of around 70 km/h (43 mph).
Q:How is the crane operated?

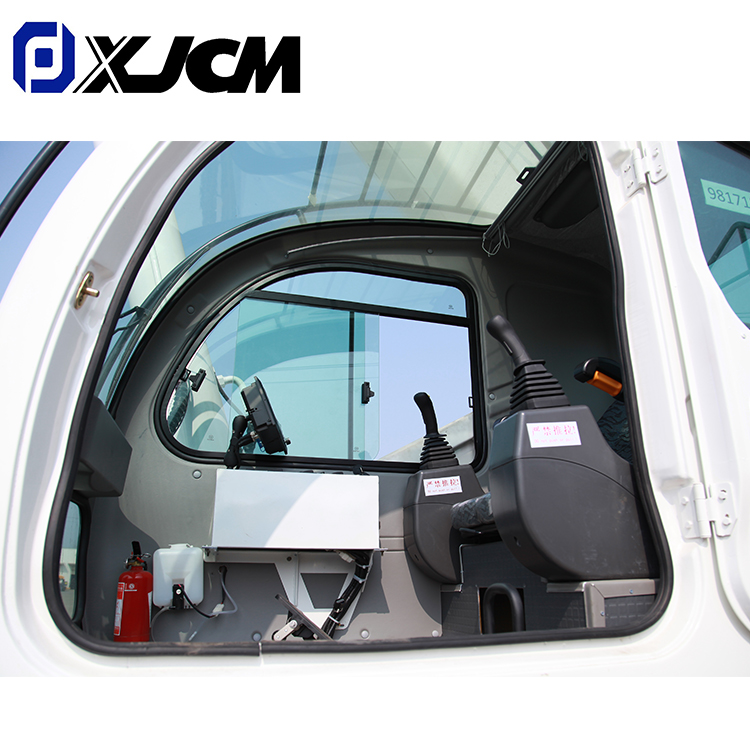

A:The crane is operated using hydraulic controls from the operator’s cab. The operator uses a series of joysticks and pedals to control the movement of the crane. Includes boom, winch and outriggers.
Q:What industries use 100-ton hydraulic mobile truck cranes?
A:100-ton hydraulic mobile truck cranes are commonly used in construction, mining, and other industries that require heavy lifting. They are ideal for projects that require frequent moves
category |
Item |
Unit |
value |
|
Outline dimension parameters |
Overall length |
mm |
15000 |
|
Overall width |
mm |
2550 |
||
Overall height |
mm |
4300 |
||
Axel base |
mm |
1950+3625+1375+1350 |
||
Tread(Front/Rear) |
mm |
2022/1830 |
||
Weight parameters |
Kerb weight |
Total weight |
kg |
52805 |
Front 1st/ 2nd axle weight |
kg |
17825 |
||
Rear 3rd and 4th axles weight |
kg |
30200 |
||
Dead weight in travel state |
Total weight |
kg |
53000 |
|
Front 1st/ 2nd axle weight |
kg |
18020 |
||
Rear 3rd and 4th axles weight |
kg |
34980 |
||
Power parameters |
Engine rated power |
Kw/(r/min) |
294/1900 |
|
Engine Max. torque/Max. toque rotation speed |
N.m(r/min) |
1900/1000~1400 |
||
Travel parameters |
Max.travel speed |
Km/h |
90 |
|
Min.turning radius |
m |
14 |
||
Turning radius at swing table tail |
m |
5.22 |
||
Min.clearance |
mm |
370 |
||
Approach angle |
° |
21 |
||
Departure angle |
° |
15 |
||
Max. grade ability |
% |
45 |
category |
item |
Unit |
value |
||
Main performance parameters |
Max. total rated lifting load |
t |
100 |
||
Min.rated working radius |
m |
3 |
|||
Outriggers span | Longitudinal |
m |
9.265 |
||
Lateral |
m |
7.8 |
|||
Lifting height | Base boom |
m |
12.5 |
||
Fully-extended boom |
m |
45.5 |
|||
Fully-extended boom + Jib |
m |
63.5 |
|||
Boom length | Base boom |
m |
12 |
||
Fully-extended boom |
m |
46 |
|||
jib |
m |
10.1/18.5 |
|||
Working speed parameters |
Boom luffing time | Boom raising time |
s |
85 |
|
Boom descending time |
s |
85 |
|||
Boom telescoping time | Boom Fully-extended time |
s |
150 |
||
Boom fully-retracting time |
s |
148 |
|||
Max.turning speed |
r/min |
2.0 |
|||
Outriggers telescoping time | Horizontal outriggers | Extending synchronously |
s |
50 |
|
Retracting synchronously |
s |
45 |
|||
Vertical outriggers | Extending synchronously |
s |
50 |
||
Retracting synchronously |
s |
50 |
|||
Hoisting speed (single rope) | Main winch(no-load) | Raising time |
m/min |
135 |
|
descending time |
m/min |
135 |
|||
Auxiliary winch(no-load) | Raising time |
m/min |
105 |
||
descending time |
m/min |
105 |
