Xjcm Supply 75 Ton Heavy Rough Terrain Crane

RT75 rough terrain crane is a kind of telescopic boom and swing type crane which travels with tire type chassis.It is suitable for narrow space travel and operations; small turning radius; strong maneuverability.
  • Fast And Safe Logistics

  • Get samples for free

Introduction

The 75-ton heavy-duty crane has good passing capacity, power performance and maneuverability. It can carry out all-round operation and hoisting driving without outriggers.

This product is widely used in heavy lifting operations in construction sites, open oil fields, warehouses, freight yards, logistics bases and other places. Short-distance transfer and lifting operations in narrow places.

XJCM rough terrain crane has 8 safety devices:

75 ton heavy crane Feature:

  1. Large lifting capacity: With a lifting capacity of 75 tons, this crane can lift and move extremely heavy loads with ease.
  2. Rugged design: The crane is built to withstand harsh weather conditions and rough terrains. It is equipped with large, sturdy tires, and a powerful engine to handle the demanding work environment.
  3. Telescoping boom: The crane has a telescoping boom that can extend to different lengths, allowing it to reach higher or farther.
  4. Hydraulic system: The crane’s hydraulic system provides the power necessary to lift and move heavy loads, with precision and control.
  5. Operator’s cab: The crane’s operator cab is equipped with the latest technology, including cameras, sensors, and computer systems that provide real-time feedback and control.
  6. Safety features: The crane is equipped with various safety features, such as anti-tip mechanisms, load sensors, and alarms to ensure safe and efficient operation.
  7. Easy transport: The crane can be easily transported to different job sites, thanks to its compact design and the ability to be disassembled quickly.

75 ton Heavy Rough Terrain Crane FAQ:

Q: What is the maximum lifting capacity of a 75 ton heavy crane?

A: The maximum lifting capacity of a 75-ton heavy rough terrain crane is 75 tons, or 150,000 pounds.

Q: What types of terrains is a heavy rough terrain crane designed to operate on?

A: Heavy rough terrain cranes are designed to work on uneven and rough terrain. Examples include construction sites, mining areas, and oil fields.

Q: What is a telescoping boom?

A: The telescopic boom is a crane component. Can be extended to different lengths to increase the working range of the crane. This allows the crane to lift and move heavy loads to greater heights or distances.

Q: What is the hydraulic system in 75 ton heavy crane used for?

A: Hydraulic systems in heavy terrain cranes are used to provide the power needed to lift and move heavy loads. precise and controllable. The hydraulic system allows the crane to operate smoothly and efficiently, even when working on uneven and rugged terrains.

Q: What safety features does a heavy rough terrain crane have?

A: A heavy rough terrain crane is equipped with various safety features, such as anti-tip mechanisms, load sensors, and alarms to ensure safe and efficient operation. The crane’s operator cab is also designed to provide optimal visibility, which helps to prevent accidents and injuries.

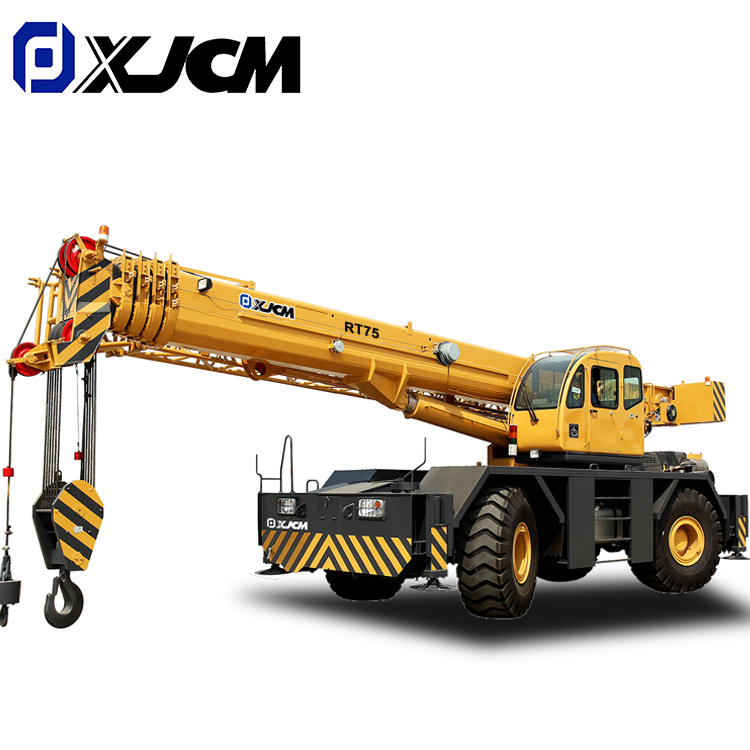

75 ton heavy crane-1

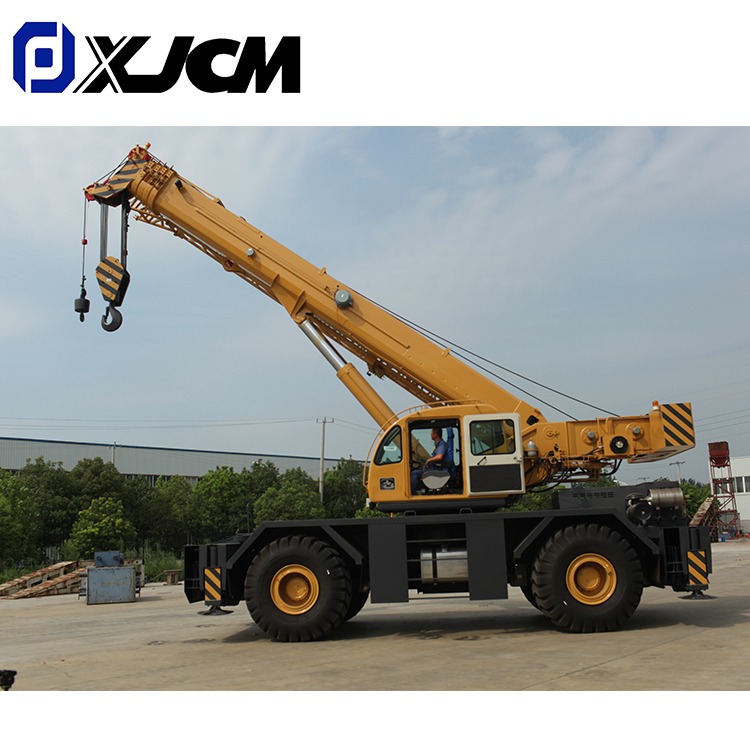

75 ton heavy crane-2

Specifications

Category

Items

Unit

Parameters

Theoretical Outline Dimension

Parameters

Overall length

mm

13400

Overall width

mm

3380

Overall height

mm

3870

Axle base

mm

4650

Tread

mm

2350

Theoretical Weight Parameters

Dead weight in travel state

Kg

48800

Axle load

Front axle

Kg

22560

Rear axle

Kg

26240

Power Parameters

Engine rated output

Kw (r/min)

198/2500

Engine rated torque

N.m (r/min)

970/1200~1700

Travel Parameters

Travel speed

Max. travel speed

Km/h

40

Turning Radius

Min. turning radius

mm

6500

Min. turning radius of boom head

mm

12100

Min. ground clearance

mm

530

Approach angle

°

24.5

Departure angle

°

24.5

Max. grade-ability

%

55



Category

Items

Unit

Parameters

Main Lifting Performance Parameters

Max. total rated lifting load

t

75

Min.. rated working radius

m

3

Turning radius at swing table tail

m

4.7

Max. load moment Base boom

KN.m

2502

Fully extended boom

KN.m

987

Outrigger span Longitudinal

m

7.75

Lateral

m

7.6

Fully extended boom

m

37

Fully extend boom+Jib

m

53

Boom length Base boom

m

10.2

Fully extended boom

m

37

Fully extend boom+Jib

m

52

Jib installation angle

°

0, 30

Working Speed Parameters

Boom derricking time Boom raising time

s

85

Boom descending time

s

85

Boom telescoping time Boom fully extended time

s

125

Boom fully retracting time

s

95

Max. swing speed

m/min

2

Outrigger telescoping time Horizontal outriggers Extending synchronously

s

30

Retracting synchronously

s

25

Vertical outriggers Extending synchronously

s

35

Retracting synchronously

s

60

Lifting speed of single rope Main winch No load

m/min

120

Auxiliary winch No load

m/min

120
