Xjcm Brand 25 Ton Truck With Crane For Sale

XJCM brand QY 25 truck crane is more reasonable than other kinds of cranes, saving raw materials and satisfying performance requirements.
  • Fast And Safe Logistics

  • Get samples for free

Introduction

A 25 ton truck with a crane typically refers to a truck that has a maximum weight capacity of 25 tons and is equipped with a crane for lifting and moving heavy objects. The crane can be mounted on the truck or may be a separate unit that is attached to the truck bed. The maximum weight that the crane can lift will depend on its size and specifications, but it is typically in the range of several tons. These types of trucks are commonly used in construction, mining, and transportation industries where heavy equipment and materials need to be moved around.

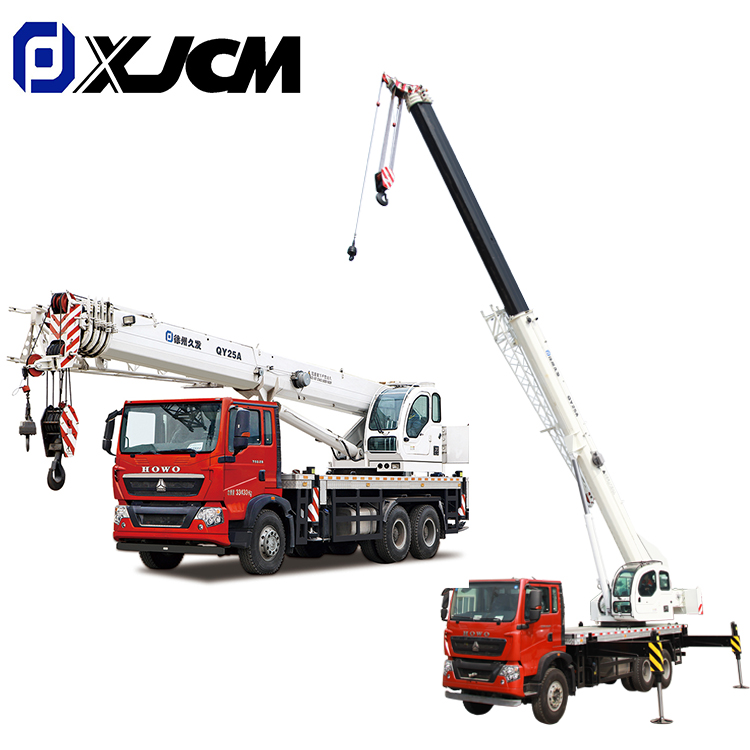

XJCM QY25A is a popular model ,no matter the quality or the price are the best choice for our client.

XJCM truck crane’s technology is mature. Also we have best price and good after sale service.

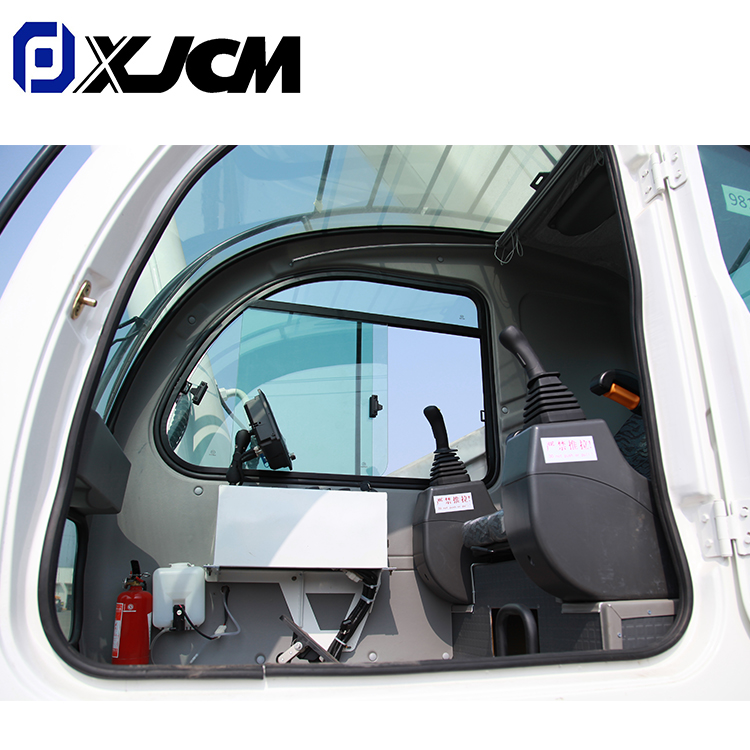

XJCM’s truck crane adopts the famous brand chassis. The drive cab and operator cab are separated. The crane advantages was good mobility, high reliability .

The company’s QY12 ton-130 ton series of truck cranes adopt domestic high-end general-purpose chassis, adhere to independent innovation, and adopt PLC programmable integrated control technology in a large area. The quality is reliable and the maintenance is convenient, which is well received by customers.

From 2020 years ,XJCM R&D Department start to design truck crane superstructures for abroad customer according to different brands and specification chassis. They will make more efforts in the field of manufacturing truck cranes in future.

Feature:

  1. Crane capacity: The crane’s maximum weight capacity is typically around 25 tons, but this can vary depending on the specific model.
  2. Reach: The crane’s reach is the distance from the base to the end of the crane’s arm. This can vary depending on the specific model, but it is typically in the range of 10 to 30 meters.
  3. Controls: The crane may have either hydraulic or electric controls for operating the crane, depending on the model. These controls allow the operator to lift and move objects with precision.
  4. Outriggers: Outriggers are support legs that extend from the sides of the truck to provide stability when the crane is in use. These are essential for ensuring safe operation and preventing the truck from tipping over.
  5. Safety features: A 25 ton truck with a crane will typically come with safety features such as overload protection, emergency stop buttons, and safety locks to prevent accidents.
  6. Durability: These trucks are built to withstand heavy use in harsh environments. They are typically made with high-strength steel and designed to be rugged and reliable.
  7. Mobility: The truck is typically designed for easy mobility, with features such as four-wheel drive, high ground clearance, and heavy-duty tires to navigate rough terrain.

25 ton truck with crane FAQ:

Q:What kind of objects can a 25 ton truck with crane lift?

A: A 25 ton truck with crane can typically lift a variety of heavy objects, such as large equipment, building materials, and shipping containers. The maximum weight that the crane can lift will depend on its specific specifications.

Q:Can a 25 ton truck with crane be driven on public roads?

A: Yes, a 25 ton truck with crane can usually be driven on public roads, but it may require a special license or permit depending on local regulations. The operator must also ensure that the truck is properly loaded and secured before driving.

Q:How much does a 25 ton truck with crane cost?

A: The cost of a 25 ton truck with crane can vary depending on its make, model, and specific features. Prices can range from tens of thousands to hundreds of thousands of dollars.

Q:Do you need special training to operate a 25 ton truck with crane?

A: Yes, operating a 25 ton truck with crane requires specialized training and certification. The operator must be trained in the safe operation of the crane, as well as in any applicable local regulations and safety requirements.

Q:What are some common industries that use 25 ton trucks with cranes?

A: 25 ton trucks with cranes are commonly used in the construction, mining, and transportation industries, as well as in shipyards and ports for loading and unloading cargo. They can also be used in disaster response efforts to move heavy debris or equipment.

Specifications

Category

Item

Unit

Value

Outline Dimension

Parameters

Overall length

mm

12840

Overall width

mm

2500

Overall height

mm

3865

Axle base 1st axle base

mm

4600

2nd axle base

mm

1350

Tread Front wheel (1st axle and 2nd axle)

mm

2060

Rear wheel (3rd axle)

mm

1860

Weight Parameters

Kerb weight Total weight

kg

33000

Front 1st  axle weight

kg

7000

Rear 2rd and 3th axles weight

kg

26000

Dead weight in travel state Total weight

kg

33145

Front 1st axle weight

kg

7050

Rear 2rd and 3th axles weight

kg

26095

Power Parameters

Engine model



MC07.28-40

Engine Max. output power

KW/(r/min.)

205/2300

Engine Max. torque/Max. toque rotation speed

N.m/(r/min.)

1100/1200-1800

Engine rated rotation speed

RPM

2300

Travel Parameters

Travel speed Max. travel speed

Km/h

90

Min. stable travel speed

Km/h

3-5

Turning radius Min. turning radius

m

10

Approach angle

°

22

Departure angle

°

16

in Performance Parameters

Max. total rated lifting load

t

25.0

Min. rated working radius

m

3.0

Turning radius at swing table tail

m

3.22

Max. load moment Base boom

KN.m

975

Outrigger span Longitudinal

m

6.2

Lateral

m

6

Lifting height Base boom

m

11

Fully-extended boom

m

40

Fully-extended boom + Jib

m

48.2

Boom length Base boom

m

10.5

Fully-extended boom

m

40

Fully-extended boom + Jib

m

47.3

Jib installation angle

°

0, 30

Working Speed Parameters

Boom luffing time Boom raising time

s

80

Boom descending time

s

60

Boom telescoping time Boom fully-extended time

s

240

Boom fully retracting time

s

100

Max. swing/slewing speed

rpm

2

Outriggers telescoping time Horizontal outriggers Extending synchronously

s

35

Retracting synchronously

s

30

Vertical outriggers Extending synchronously

s

35

Retracting synchronously

s

30

Hoisting speed (single rope) Main winch Full load

m/min

75

No load

m/min

100

Auxiliary winch Full load

m/min

75

No load

m/min

100

Noise limitation

External radiation

dB(A)

≤116

Driver position

dB(A)

≤90
