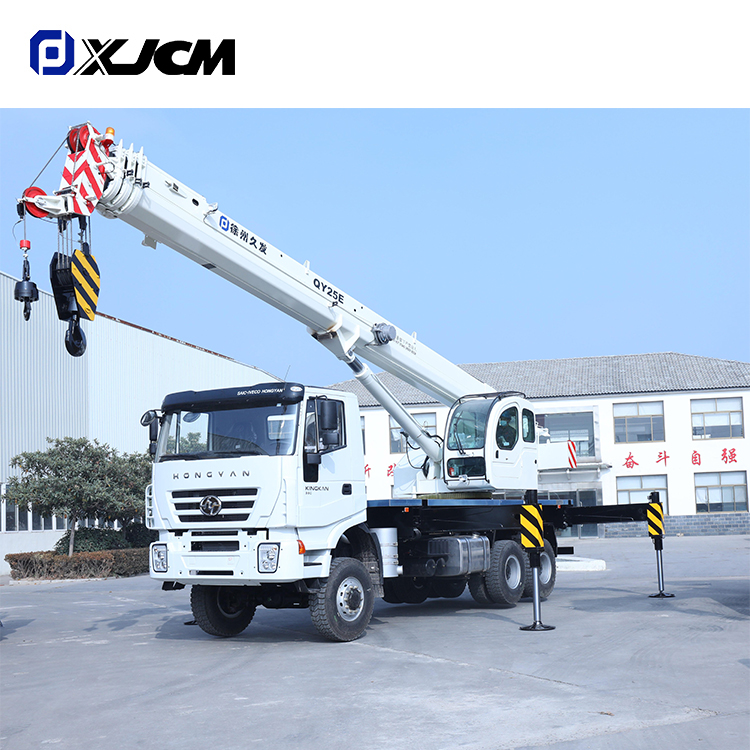

Xjcm Brand 6×6 Hongyan Chassis 25 Ton Truck With Crane

2020 years XJCM add new brand Chassis Hongyan for 25 ton truck crane
  • Fast And Safe Logistics

  • Get samples for free

Introduction

The 6X6 Hongyan chassis 25-ton truck with a crane is a heavy-duty vehicle that is commonly used in construction, mining, and other heavy-duty applications. Here are some specifications of such a truck:

These trucks are known for their durability, strength, and ability to work in tough environments. They are designed to handle heavy loads and provide reliable performance even in difficult conditions. With their powerful cranes, they can lift and move heavy equipment and materials, making them an essential part of many construction and mining operations.

QY25E three-axle 6×6 all-wheel drive off-road general chassis , strong off-road performance, 280KW power, maximum speed 90Km/h, maximum gradeability over 45%, luxurious full-head cab with sleeper, driving comfort Good; air-conditioning three-dimensional air supply, meticulous care.

XJCM truck crane’s technology is mature. Also we have best price and good after sale service.

XJCM’s truck crane adopts the famous brand chassis. The drive cab and operator cab are separated. The crane advantages was good mobility, high reliability .

The company’s QY12 ton-130 ton series of truck cranes adopt domestic high-end general-purpose chassis, adhere to independent innovation, and adopt PLC programmable integrated control technology in a large area. The quality is reliable and the maintenance is convenient, which is well received by customers.

From 2020 years ,XJCM R&D Department start to design truck crane superstructures for abroad customer according to different brands and specification chassis. They will make more efforts in the field of manufacturing truck cranes in future.

6×6 Hongyan Chassis 25 Ton Truck With Crane Feature:

  1. Strong Chassis: The 6X6 Hongyan chassis is known for its strength and durability, making it capable of handling heavy loads and rough terrain.
  2. Powerful Crane: The crane mounted on the truck can lift and move heavy equipment and materials with ease. The crane’s capacity can range from 10-20 tons, depending on the specific model.
  3. High Load Capacity: The truck’s GVW is 25 tons, which means it can carry a significant amount of weight. This makes it ideal for transporting heavy equipment and materials.
  4. Comfortable Cabin: The cabin is designed to accommodate up to three people and is equipped with air conditioning and other comfort features, making long drives more comfortable for the driver and passengers.
  5. Efficient Engine: The truck is typically equipped with a diesel engine with a power output of 300-400 horsepower, which provides the necessary power and torque to drive the truck and operate the crane.
  6. Versatile: The 6X6 Hongyan chassis 25-ton truck with a crane is a versatile vehicle that can be used in a variety of industries, including construction, mining, and transportation.

6X6 Hongyan Chassis 25 ton truck with crane FAQ:

Q: What is the lifting capacity of the crane on the truck?

A: The crane’s capacity can range from 10-20 tons, depending on the specific model.

Q: What is the gross vehicle weight (GVW) of the truck?

A: The GVW of the 6X6 Hongyan Chassis 25 ton truck with crane is 25 tons.

Q: What type of engine does the truck have?

A: The truck is typically equipped with a diesel engine with a power output of 300-400 horsepower.

Q: How many people can the cabin accommodate?

A: The cabin can accommodate up to three people.

Q: What industries commonly use the 6X6 Hongyan Chassis 25 ton truck with crane?

A: This truck is commonly used in construction, mining, and transportation industries.

Q: Is the truck suitable for off-road use?

A: Yes, the 6X6 Hongyan Chassis is known for its ability to handle rough terrain, making it suitable for off-road use.

Specifications

Main parameters in travel state

Category

Item

Unit

Values

Dimension

Overall length

mm

11850

Overall width

mm

2500

Overall height

mm

4200

Axle base

mm

4700+1400

Wheelbase

mm

1866(后)

Front/Rear suspension

mm

1435/1490

Front/Rear extension

mm

2376/460

Weight

Total weight

Kg

29995

Curb weight

Kg

29800

Axle load Front axle

Kg

12000

Rear axle

Kg

17995

Power

Engine rated output power

Kw/(r/min)

280/2100

Engine max. torque

N.m(r/min)

1500/1500

Travel parameters

Max. Travel speed

Km/h

90

Min.rotation speed at turntable tail

m

3.23

Min.ground clearance

mm

265

Approach angle

°

20

Departure angle

°

20

Main parameter in lifting state

Category

Item

Unit

Values

Main performance parameters

Max.rated lifting load

t

25

Rated working radius

m

3

Max.load moment Base boom

KN.m

827

Fully-extended boom

KN.m

552

Outriggers span Vertical

m

5.6

Horizontal

m

6.0

Lifting height Base boom

m

10.5

Fully-extended boom

m

32.1

Fully-extended boom+jib

m

38.8

Boom length Base boom

m

9.9

Fully-extended boom

m

31.2

Fully-extended boom+jib

m

38.5

Jib angle

°

0、30

Operation speed parameters

Boom derrick time Raise

s

55

Down

s

36

Boom telescopic time Fully-extended

s

80

Fully-retracting

s

48

Max.slewing speed

r/min

2.0

Outrigger telescopic time Horizontal Synchronously extending

s

35

Synchronously retracting

s

30

Vertical Synchronously extending

s

35

Synchronously retracting

s

30

Lifting speed for single line(on 4th layer)) Main winch No load

m/min

120

Auxiliary winch No load

m/min

120
